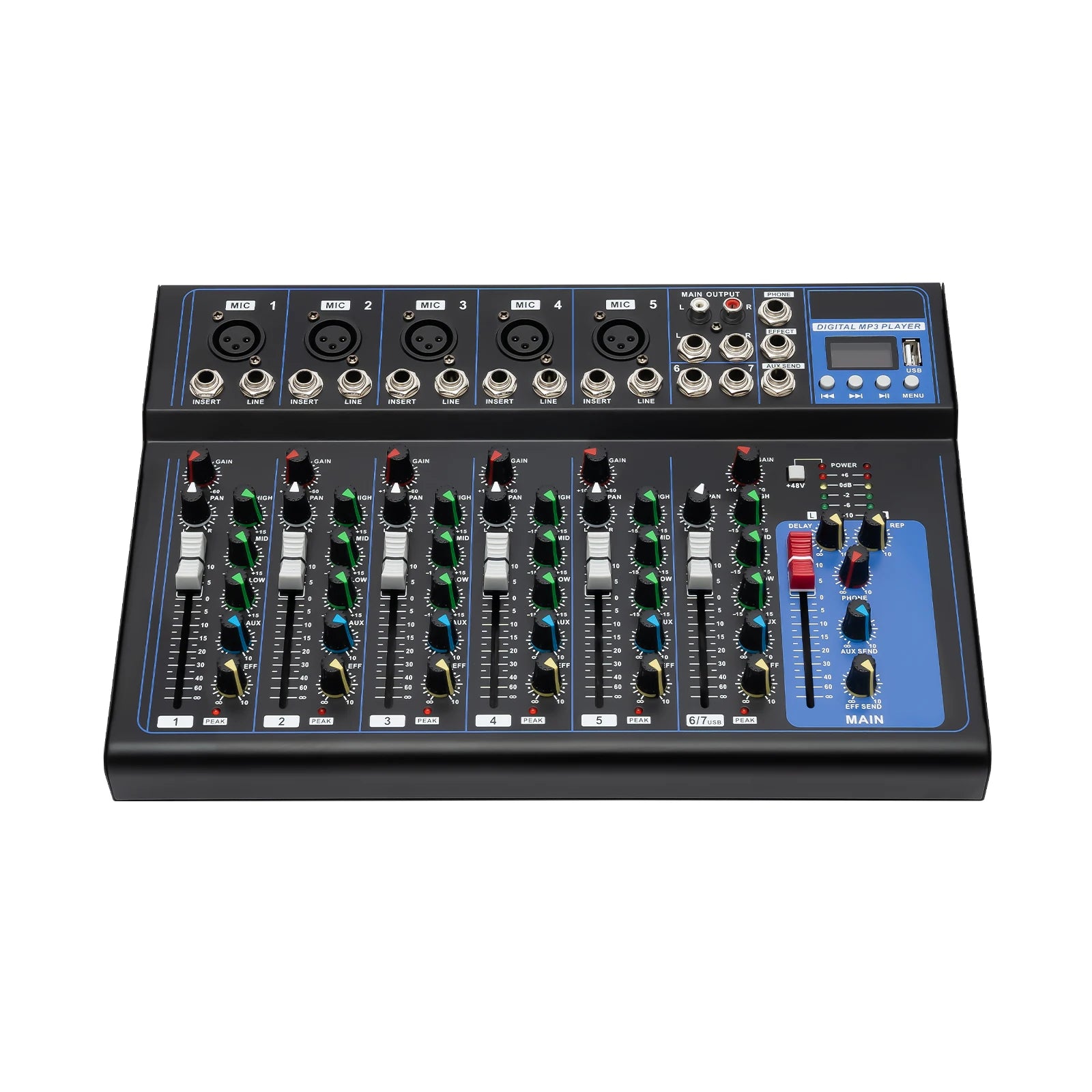

Bluetooth Portable 7-Channel Audio Mixer – USB DJ Sound Mixing Console with MP3 Input and 48V Phantom Power for Studio Recording

Description

This 7-channel audio mixer has excellent functionality and simple operation, which can flexibly adapt to your various audio needs, bringing you and your audience a clear and high-quality audio experience. Whether it's home recording or professional performances, this mixer can be your ideal audio partner. Choosing it not only enhances your audio production experience, but also makes your creative process smoother and more efficient.

Specification

Material: Iron
Color: Black
Style: Modern
Shape: Rectangle
Process: Spraying
Plug Type: US/UK/EU Standard
Music Modes: Nature, Pop, Rock, Jazz, Classical, Country
Model: LWV 16PS
Input: AC 110V/230V 50Hz
Input Power: 18W
Output: AC 18V × 2 350mA
Maximum Mic Input Level: +24dBu
Maximum Line Input Level: +24dBu
Maximum Output Level: +26dBu
Main Level Meter: 5-segment Light-emitting Diode
Frequency Response: 20Hz-20kHz±0.5dB
Common Mode Rejection Ratio (MIC 1kHz): >75dB
Total Attainment Distortion (THD+N): ＜0.01% (Channel Input to Mix Output)
Crosstalk (1kHz): >85dB
Noise (22Hz-22kHz): Equivalent Input Noise -116dBu, Residual Output Noise <-80dBu
Mono/Stereo Channel EQ: High, Broom, +/-15dB, 12Khz
Low, Broom, +/-15dB, 80Khz
Mid, Peak-to-Valley, +/-15dB, 2.5Khz
Mono: XLR Balanced, 2-pin Hot End, 2Kohm Sensitivity -60 to +14dBu
TRS Balanced, Tip Hot End, 10Kohm Sensitivity -40 to +14dBu
XLR Phantom Power +48V
Stereo: TRS Unbalanced, Hot Tip End, 10Kohm, Sensitivity -40 to +14dBu
L/R Outputs: TRS, Unbalanced, Hot Tip, <75ohm, -2dBu, +18dBu Max.
FX/AUX Output: TRS, Unbalanced, Hot Tip, <75ohm, -2dBu,+18dBu Max.
Headphone Type: TRS, Tip L, Recommended for 30-600ohm Headphones
Number of Channels: 7
Bluetooth Connection Range: Within 10m/32.8ft
Fader Slider Length: 70mm/2.8in

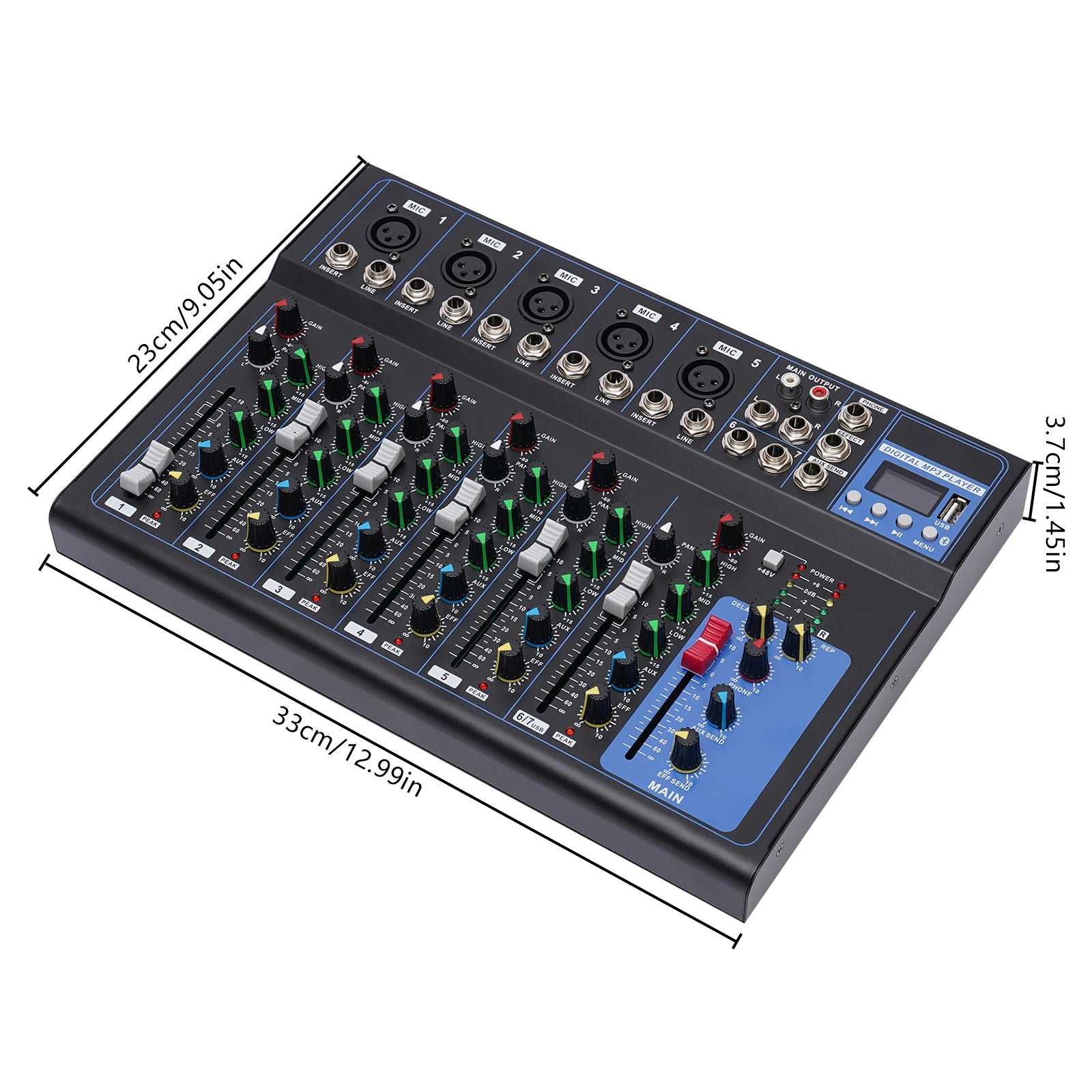

Product Size: 33.5*23*4cm/13.2*9*1.6in
Package Size: 38.5*31*10cm/15.2*12.2*3.9in
Net Weight: 2.5kg/5.5lbs
Gross Weight: 3kg/6.6lbs

Key Features

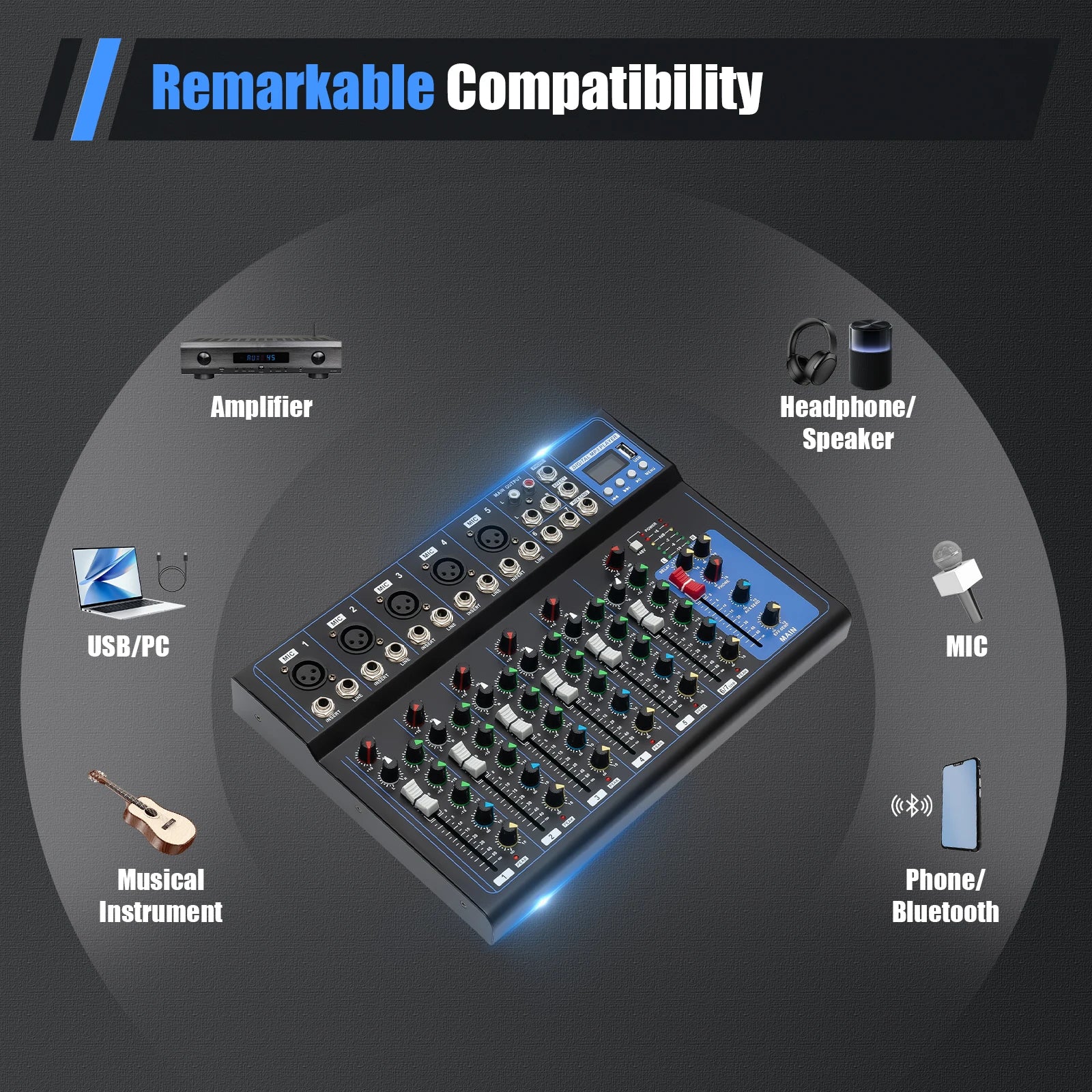

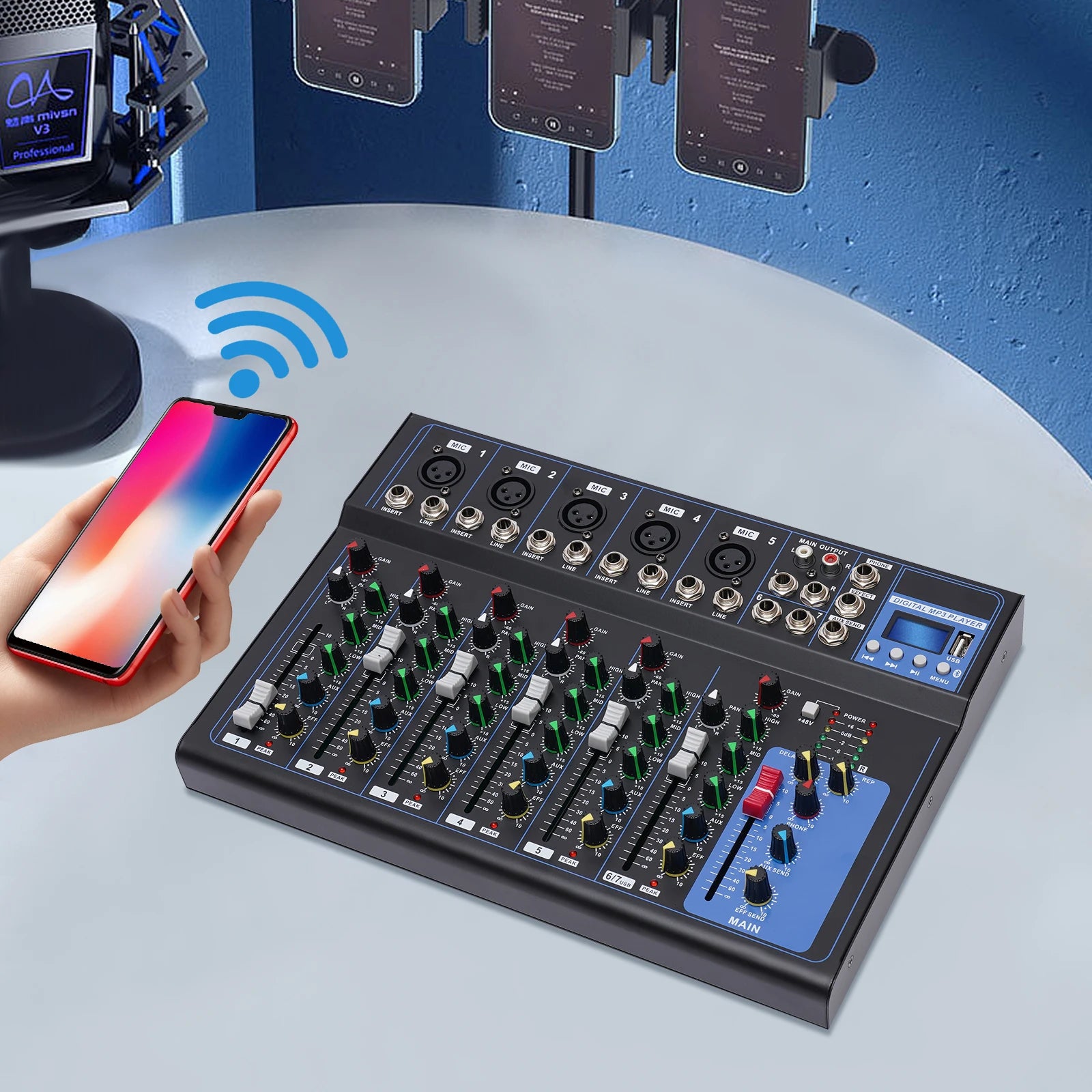

Remarkable Compatibility: It has 48V phantom power, microphone input, and USB interface, compatible with mobile phones, computers, speakers, electronic instruments, monitor headphones, and amplifiers. Its built-in Bluetooth can achieve 1s connection, easily helping you achieve professional tuning and making the creative process more flexible.

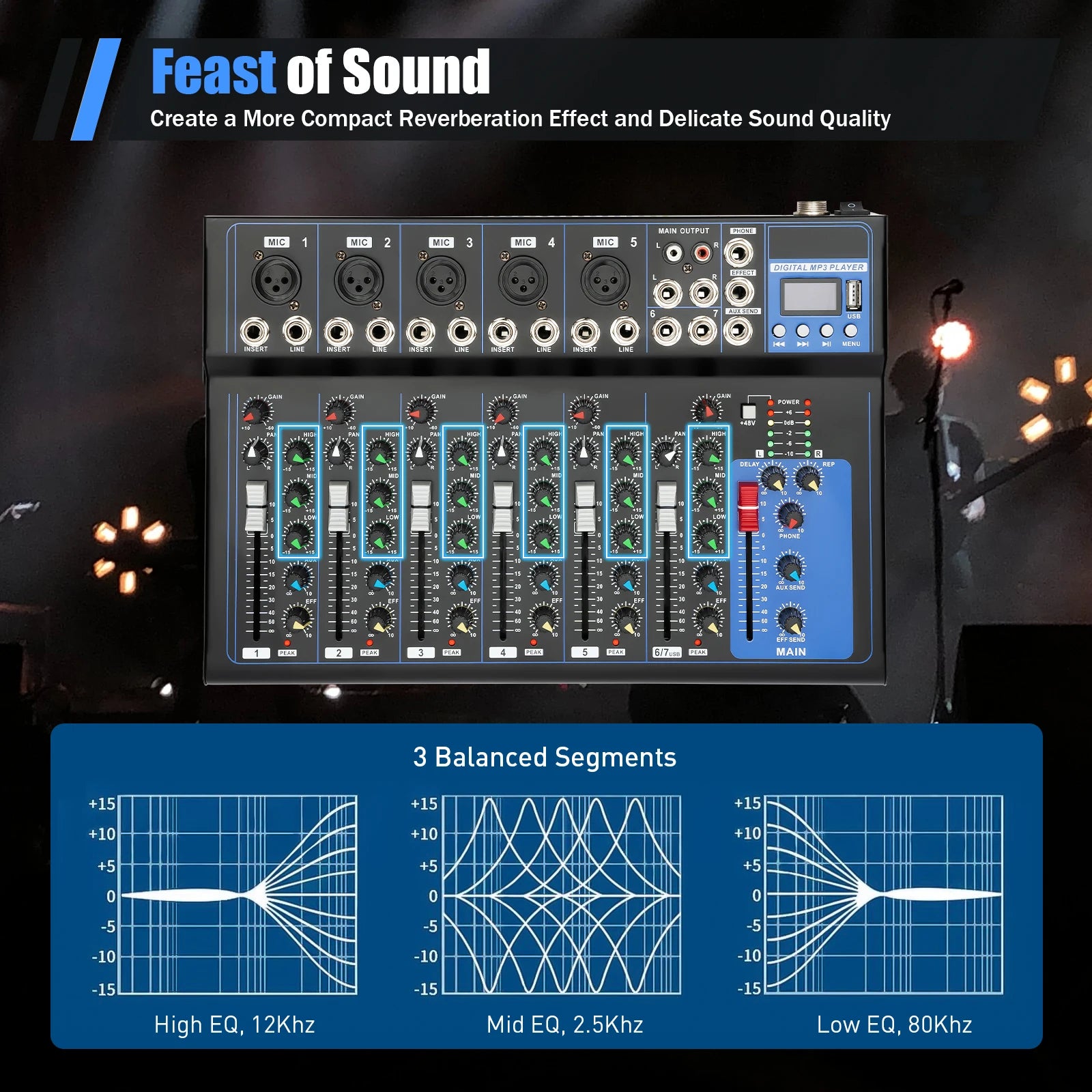

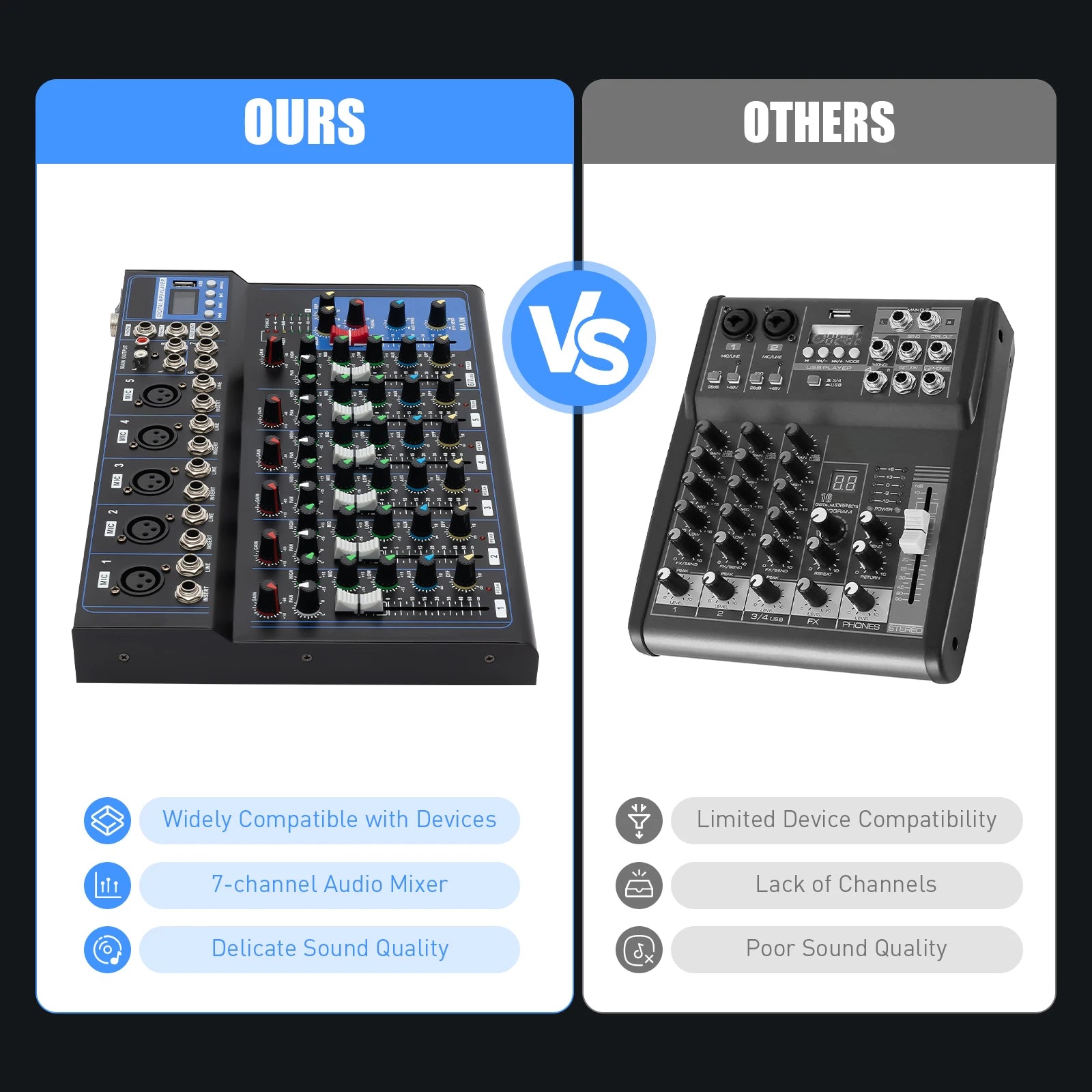

Delicate Sound Quality: It has five mono microphone/line channel inputs and one set of stereo inputs, and each mono channel has 3 balanced segments to independently adjust the mid, high, and low sounds, creating a more compact reverberation effect and delicate sound quality.

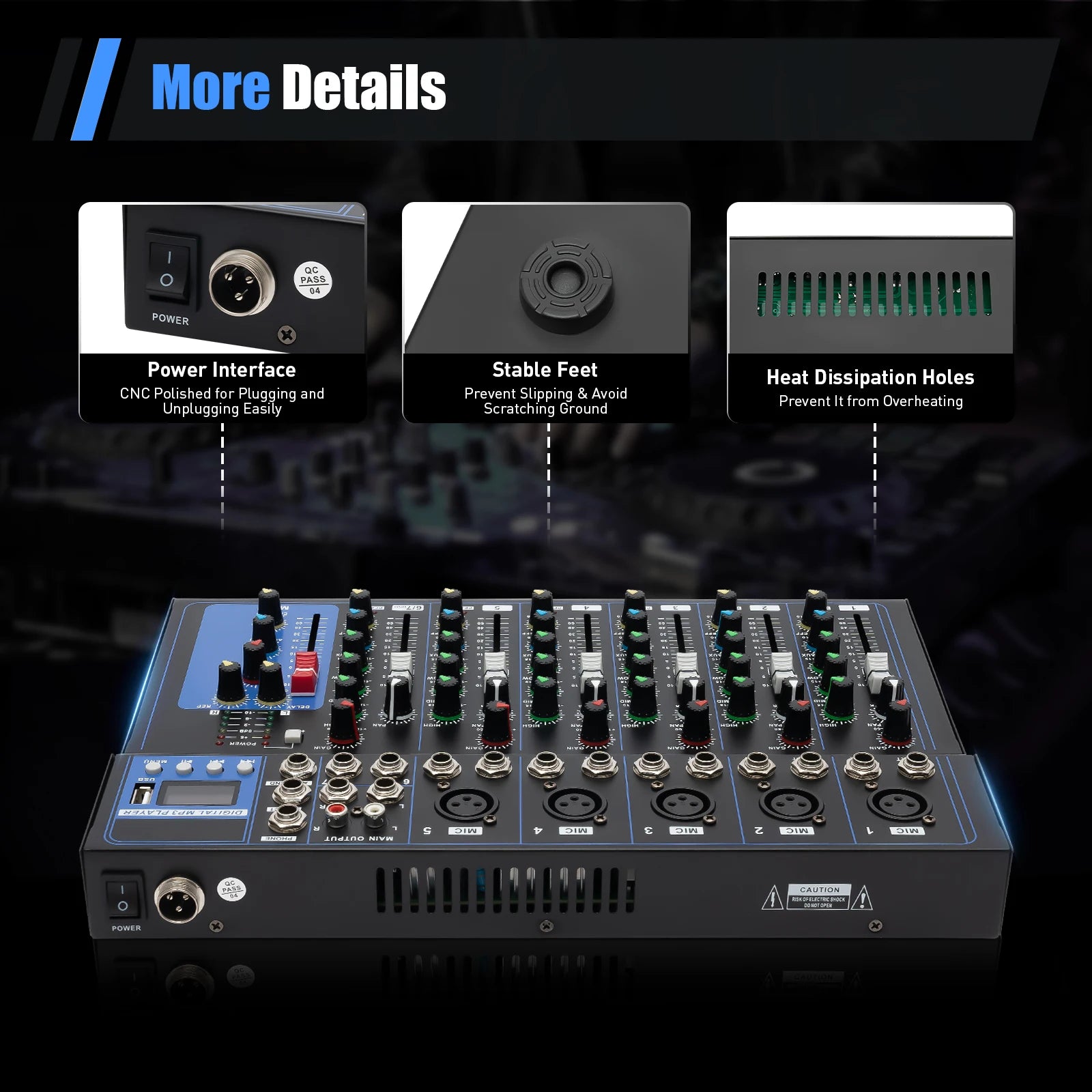

Built to Last: The impact-resistant iron casing with a spraying process enhances the anti-drop and durability of the mixer. Therefore, you can use it for a long time without frequent replacement, which can save your costs to a certain extent.

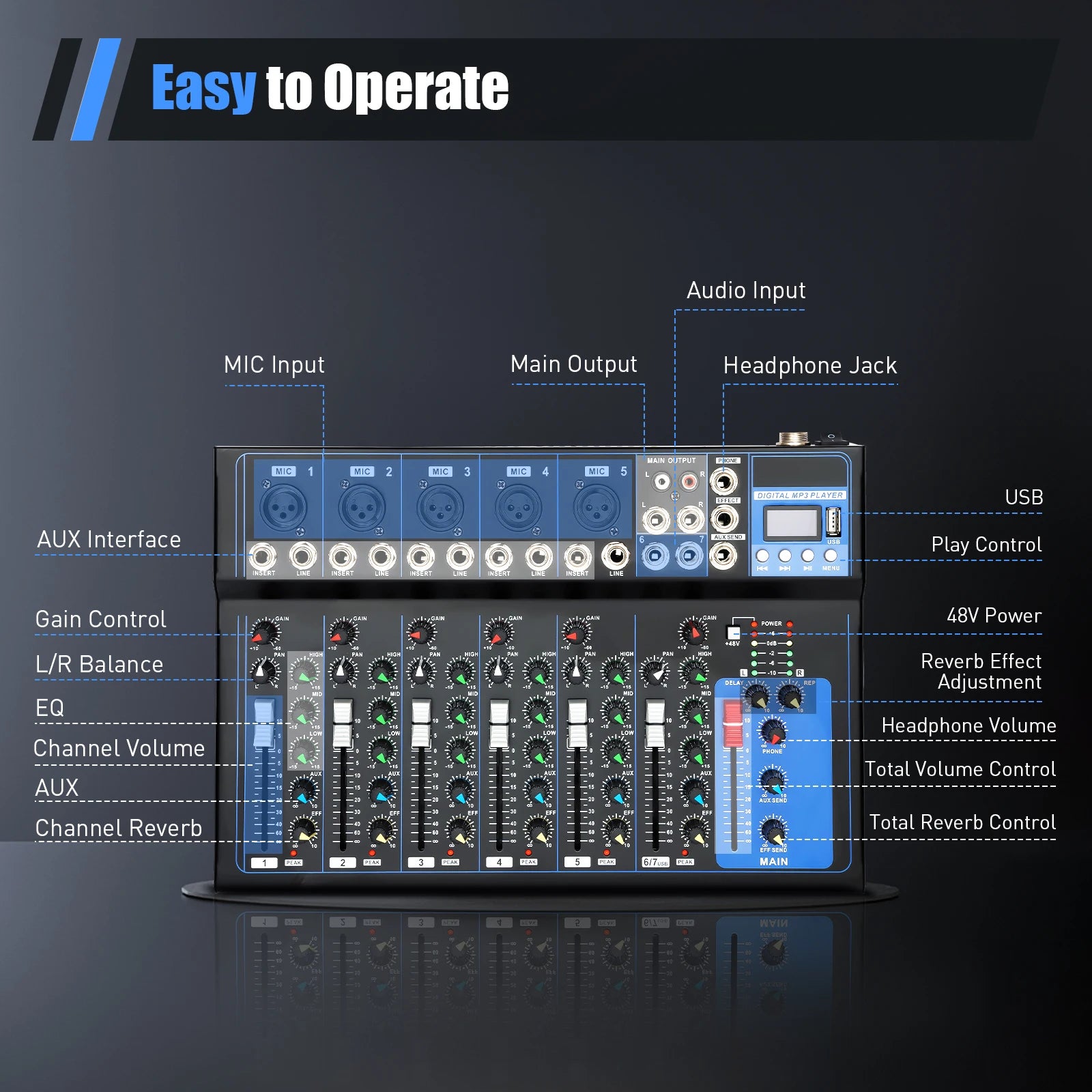

Easy to Operate: The LCD screen and colored indicator lights can display the working status in real time. This design not only makes the operation simpler and more intuitive, but also allows you to quickly adjust audio settings, making it easy for even beginners to get started.

Precise Tuning: Its rotary potentiometer has a concave-convex design on the surface to avoid hand slipping, and its fader with an extended slider is made with high-quality material to ensure smooth movement during use, achieving more precise adjustment.

Easy to Carry: With compact size (13.2*9*1.6in) and lightweight (5.5lbs), it can be carried to any location with less effort and stored without taking up too much space.

Application

It is suitable for home KTV, band/stage performances, campus activities, conferences, bars, music dining bars, recording studios, webcasts, and other occasions.

Package Included

1* 7-channel Audio Mixer
1* Power Cord
1* English Manual

Notes

1.Please read the manual carefully and pay attention to the safety precautions inside.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
